Guardian Surface Linear
The Guardian Surface Linear ensures safe, compliant and efficient lighting across secure environments. Designed, tested, and approved to meet the toughest custodial standards. The Guardian Surface Linear is a Ministry of Justice (MoJ) approved luminaire, delivering secure, high-performance illumination where safety and reliability are critical. Developed to meet the demanding requirements of custodial and secure healthcare environments, Guardian combines robust engineering with precise light control. Tested in accordance with MoJ specification, it provides consistent, compliant lighting for high-risk areas, including cells, corridors, and shower/WC spaces.
Variant: GDNX
Contact for enquiry
Contact us if you have any questions about your options or would like to place an order.
Part L compliant >120 lm/w
Ligature resistant
IK rating: IK18
IP65 Ingress protection
Colours & Finishes
RAL9003 White
RAL9005 Black
Stainless Steel
-
- Ministry of Justice (MoJ) approved anti-ligature, vandal-resistant luminaire
- LED versions on MoJ list of approved products
- Vandal-resistant ( IK 10++) 10mm composite polycarbonate lens secured by tamper-proof Resistorx security screws
- 2.5mm mild steel powder-coated lens frame
- Removable gear tray and LED engine plate
- Mains lighting on two separate circuits allowing for low, medium and high output levels. Separate night light. 1000mm version efficacy over 140 lm/W
- 1000mm version covers existing footprint of original standard cell fittings from Light Years Ahead, Designplan and Thorn
- 390mm version covers 1ft
- Monitor WC/shower light
- Dirty Protest Cell version available
- Mains and night light on separate circuits
- Mains and night light outputs consistent with MoJ standard-cell accommodation specified lux levels
- 3000K colour temperature as specified by the MoJ
-

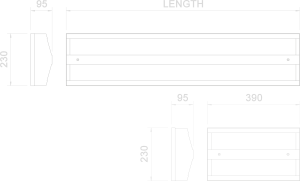

L390/660/1000 x D230 x H95mm
-
Custodial – prison safer cell accommodation as specified by the Ministry of Justice
Healthcare – patient accommodation
-
Light Years Ahead Guardian Surface Linear, a MoJ-approved anti-ligature, vandal-resistant LED surface-mounted luminaire, constructed with a 2.5mm powder-coated mild steel frame, 10mm composite polycarbonate lens secured by Resistorx tamper-proof screws, IK10++ impact rating, dual-circuit mains lighting with separate night light for low, medium, and high output, removable gear tray and LED engine plate for maintenance, 3000K colour temperature as specified by the MoJ, efficacy over 140 lm/W (1000mm version), available in 1000mm and 390mm lengths to fit existing cell footprints, Dirty Protest Cell version available.
-
Additional options are available. Please contact our expert team for more information.
